19" waterproof dustproof stainless steel 304 316 touch panel PC computer for food, beverage, biotechnology HMI fanless industrial all in one M12 connector
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| سطح شیشه | TFT | اندازه | 19 اینچ |
|---|---|---|---|
| محلول بازوی CPU | Arm Quad Core Cortex-A17 RK3288 ، 1.8GHz (RK3399/RK3568/RK3588 اختیاری) | CPU X86 Solution 1 | Intel® Celeron J1900/J4125/J6412 2.0GHz |
| CPU X86 Solution 2 | Intel® Core i3/i5/i7 (نسل 4 ~ دوازدهم اختیاری) | پیش روی | Android 7.1/8/10/11/12 و غیره |
| ورودی برق | DC12V | دمای عملیاتی | -10 ~ 60 ℃ |
| صفحه لمسی | لمس مقاومت ، شیشه AR/AG/AF ، باند نوری | سوار شدن | سوار وتا ، یوغ کوه |
توضیحات محصول

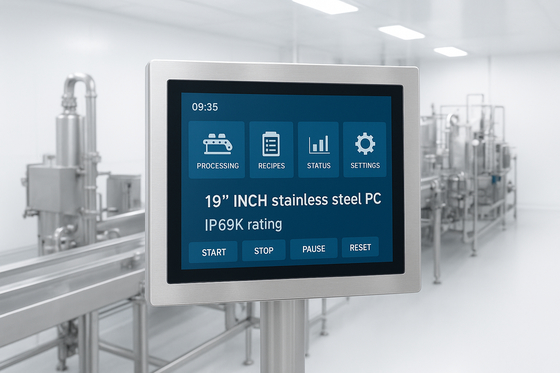

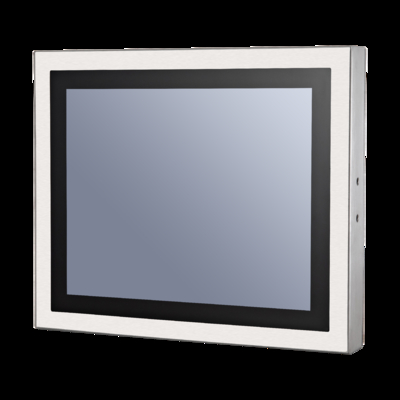

19" waterproof dustproof stainless steel 304 316 touch panel PC computer food, beverage, biotechnology HMI fanless industrial all in one M12 connector
The ITD Full IP69K panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical processing, pharmaceuticals, biotechnology process manufacturing and other industrial applications. This waterproof IP69K PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP69k sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration, high-pressure water jets and steam cleaning while meeting required EMI/RFI resistance compliance.
Features of IP69K panel PC

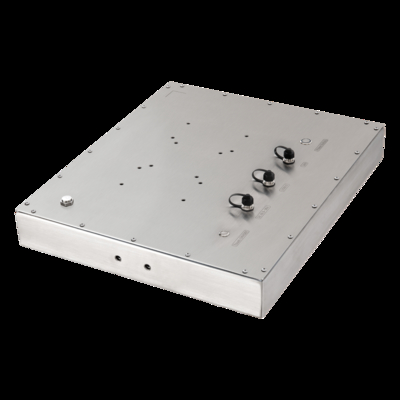

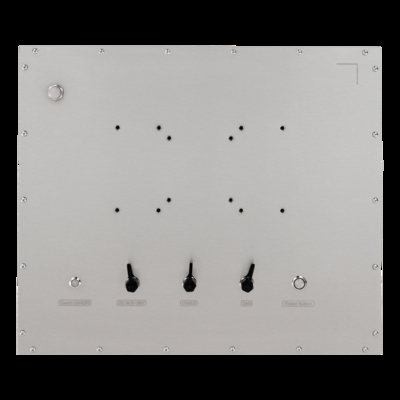

•Robust stainless steel(304) enclosure, sealed M12 metal I/Os from particles, water, and corrosive agents
•IP69K fully sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged stainless steel enclosure design with high EMC, fanless design and flat surface with easy-to-clean
•ARM based board built-in or Windows-based PC integrated
•Flexible, reliable, and ruggedized for open platform HMI/SCADA
•Provides improved power efficiency and reduced consumption
•CE, FCC, RoHS Compliance
DISPLAY of stainless steel panel PC
|
Panel |
Cell Type/Glass Surface |
TFT |
|
Size/ Aspect Ratio |
19” 5:4 |
|
|
Active Area/ Pixel Pitch |
376.32(W) × 301.056(H)/0.294× 0.294mm |
|
|
Native Resolution/ Colors |
1280 × 1024 /16.7M |
|
|
Brightness/ Contrast |
350cd/㎡(500~1000cd/㎡optional)/1000:1 |
|
|
Response Time/ Viewing Angle(Typical) |
3.6/1.4ms/85/85/80/80 |
|
|
Light Source |
LED Backlight with 50000Hours’Lifetime |
SYSTEM
|
Item |
ARM Solution |
X86 Solution 1 |
X86 Solution 2 |
|
CPU |
ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) |
Intel® Celeron J1900/J4125/J6412 2.0GHz |
Intel® Core i3/i5/i7 (4th~12th Generation optional) |
|
Chipset |
Rockchip |
Intel Bay Trail SoC |
Intel SoC Chipset |
|
Memory |
2GB; 4GB/8GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) |
2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.) |
|
Storage |
8GB; 16GB/32GB/64GB/128G Optional
|
1×mSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD |
1×mSATA, 1×SATA 1×M.2 Default to 64GB SSD |
|
Graphics |
Supports max. 4K resolution |
Intel HD/UHD Graphics (By CPU) |
Intel HD/UHD Graphics (By CPU) |
|
Default Waterproof M12 I/O |
2 × USB, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional |
|
LAN |
1×10/100/1000Mbps Ethernet |
1× 10/100/1000Mbps Ethernet( Dual LAN optional) |
1×10/100/1000Mbps Ethernet( Dual LAN optional) |
|
OS |
Android 7.1/8/10/11/12, etc. Linux Ubuntu(optional) |
Windows 7/10, Linux Windows 11(available for J4125/J6412) |
Windows 7/10, Linux Windows 11(available for 7th gen. or above) |
GENERAL
|
Power |
Input Voltage |
DC 12V 2.0 |
|
Operation/Power Saving |
18~38W |
|
|
Environmental Considerations |
Operating Temperature |
-10~60℃ |
|
Storage Temperature |
-20~70℃ |
|
|
Relative Humidity |
10%~90%(Non-Condensing) |
|
|
Order Information |
19” IP69K Stainless Steel Android Panel PC with Resistive Touch: ITD19PPCT1IPSEx-69K |
|
|
19” IP69K Stainless Steel Android Panel PC with PCAP Touch: ITD19PPCT5IPSEx-69K |
||
|
19” IP69K Stainless Steel J1900 Panel PC with Resistive Touch: ITD19PPCT1IPSJ1-69K |
||
|
19” IP69K Stainless Steel J1900 Panel PC with PCAP Touch: ITD19PPCT5IPSJ1-69K |
||
|
19” IP69K Stainless Steel J4125 Panel PC with Resistive Touch: ITD19PPCT1IPSJ4-69K |
||
|
19” IP69K Stainless Steel J4125 Panel PC with PCAP Touch: ITD19PPCT5IPSJ4-69K |
||
|
19” IP69K Stainless Steel J6412 Panel PC with Resistive Touch: ITD19PPCT1IPSJ6-69K |
||
|
19” IP69K Stainless Steel J6412 Panel PC with PCAP Touch: ITD19PPCT5IPSJ6-69K |
||
|
19” IP69K Stainless Steel i3 Panel PC with Resistive Touch: ITD19PPCT1IPSI3-69K |
||
|
19” IP69K Stainless Steel i3 Panel PC with PCAP Touch: ITD19PPCT5IPSI3-69K |
||
|
19” IP69K Stainless Steel i5 Panel PC with Resistive Touch: ITD19PPCT1IPSI5-69K |
||
|
19” IP69K Stainless Steel i5 Panel PC with PCAP Touch: ITD19PPCT5IPSI5-69K |
||
|
19” IP69K Stainless Steel i7 Panel PC with Resistive Touch: ITD19PPCT1IPSI7-69K |
||
|
19” IP69K Stainless Steel i7 Panel PC with PCAP Touch: ITD19PPCT5IPSI7-69K |
||
|
19” IP69K Stainless Steel Panel PC with Tempered Glass No Touch: ITD19PPCG1IPSxx-69K |
||
|
19” 1000nits IP69K Stainless Steel Panel PC with Touch: ITD19PPCG1HBIPSxx-69K |
||
